Flake Crusher AFC
Flake Crusher AFC

Flake Crusher AFC

With the Flake Crusher A FC brittle, easily broken materials are crushed gently.

Flake Crushers are also known as screen granulators, screen graters, screen breakers or strainers.

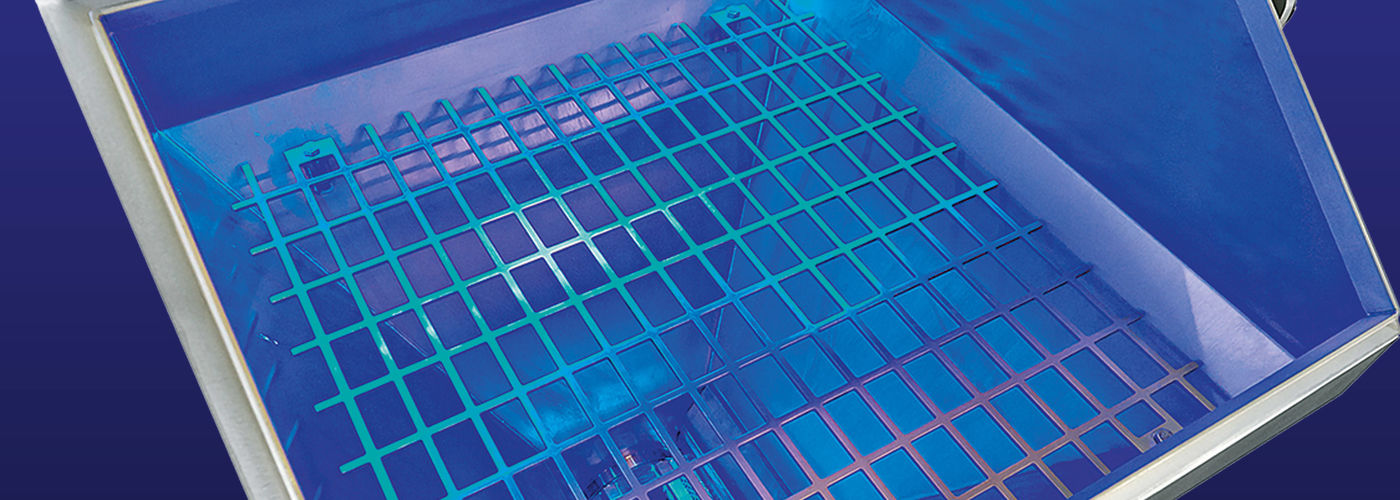

The material to be crushed is strained through a screen with the horizontal rotor. The crushing movement of the rotor can take place both in an oscillating and in a rotating manner.

Typically the circumferential speed is around 1 m/s. Due to this the Flake Crusher A FC is often used in hazardous dust areas.

Applications

  • Crushing of lumped salts and hygroscopic substances
  • Disagglomeration tasks
  • Disagglomeration after drying and mixing
  • Crushing of flakes to granulate
  • Recycling of tablets
  • Dust-free crushing

Features

  • Horizontal grinding area
  • Screen netting of 0.5 - 10 mm with support material or grinding sheet
  • Easy, quick screen change and cleaning
  • Easy disassembly and assembly
  • Made completely from stainless steel
  • CIP/WIP available
  • Can be made inert

Flake Crushers A FC can be optimally equipped for every application:

  • Intake and discharge funnel
  • Inlet chute with protective grid for manual feed unit
  • Connection flange
  • Specifiable frame (lifting column, slewing mechanism, rollers, ...)
  • Seals with gap air flushing
  • Inerting
Flake Crusher AFC 200 300 400 500 600
Type of drive unit (kW) 0.75 1,1 1,5 2,2 2,2
min. throughput kg/h 50 75 100 125 150
max. throughput kg/h 500 750 1.000 1.250 1.500
Brochure Flake Crusher AFC
