Oscillating take-off systems

Best film flatness

for layflat widths of up to 3,5 m
Oscillating take off systems
Oscillating take-off systems
Oscillating take off systems
Oscillating take-off systems

Oscillating take-off systems

The optimum choice of film take-off governs the film flatness, which can also be optimised by various different configurations.

The Hosokawa Alpine oscillating take-off systems can be designed for

  • layflat widths of up to 3500 mm
  • take-off speeds of up to 250 m/min

Designs

Standard Take-off units

  • Cost-effective, optimized solution for standard film applications

  • With torque support for turning bar pair

  • Available in layflats from 800 - 2,600 mm

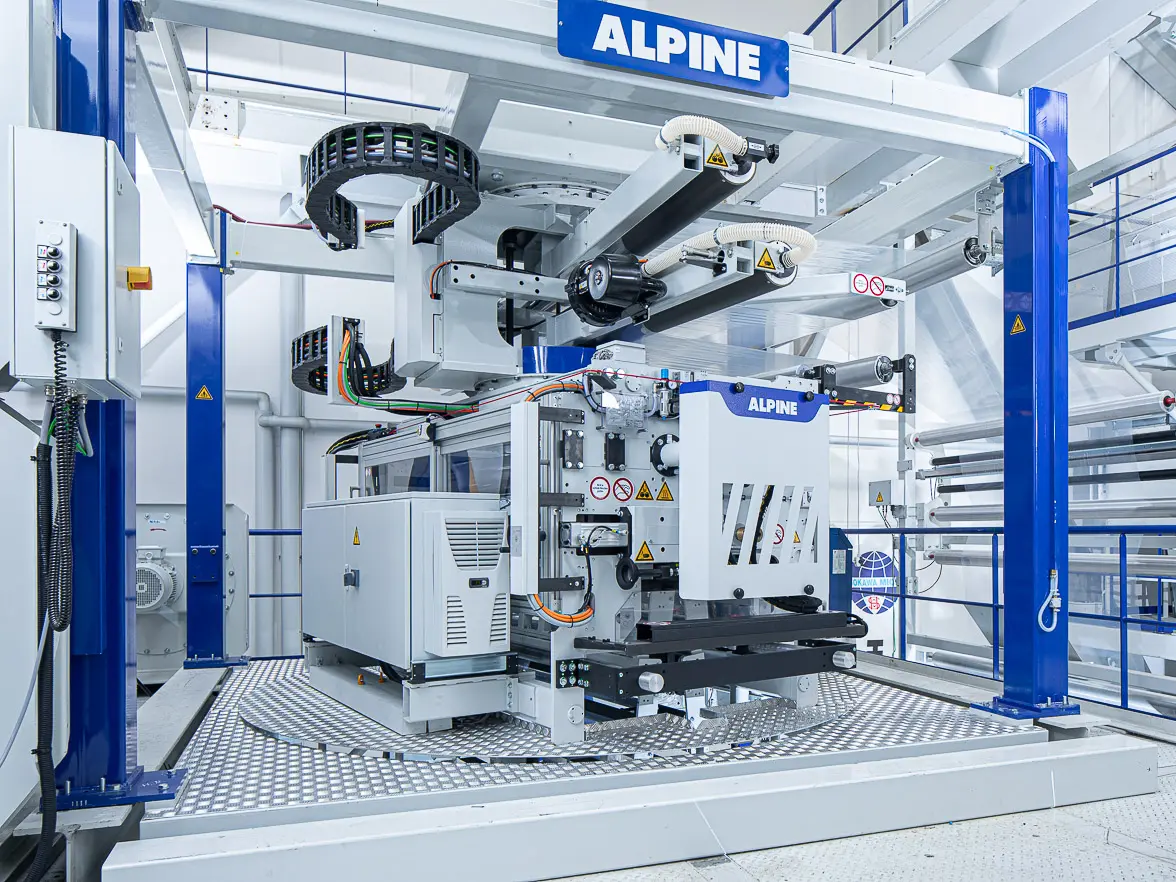

Hanging take-off unit

  • Suspended by means of two internally toothed ball slewing rings

  • For high-quality films and films with side folds

  • Available in layflats from 800 - 3,200 mm


In order to optimally adapt the take-off to the respective application, the options S-Wrap 1, S-Warp 2 or S-Wrap 4 can be integrated.
