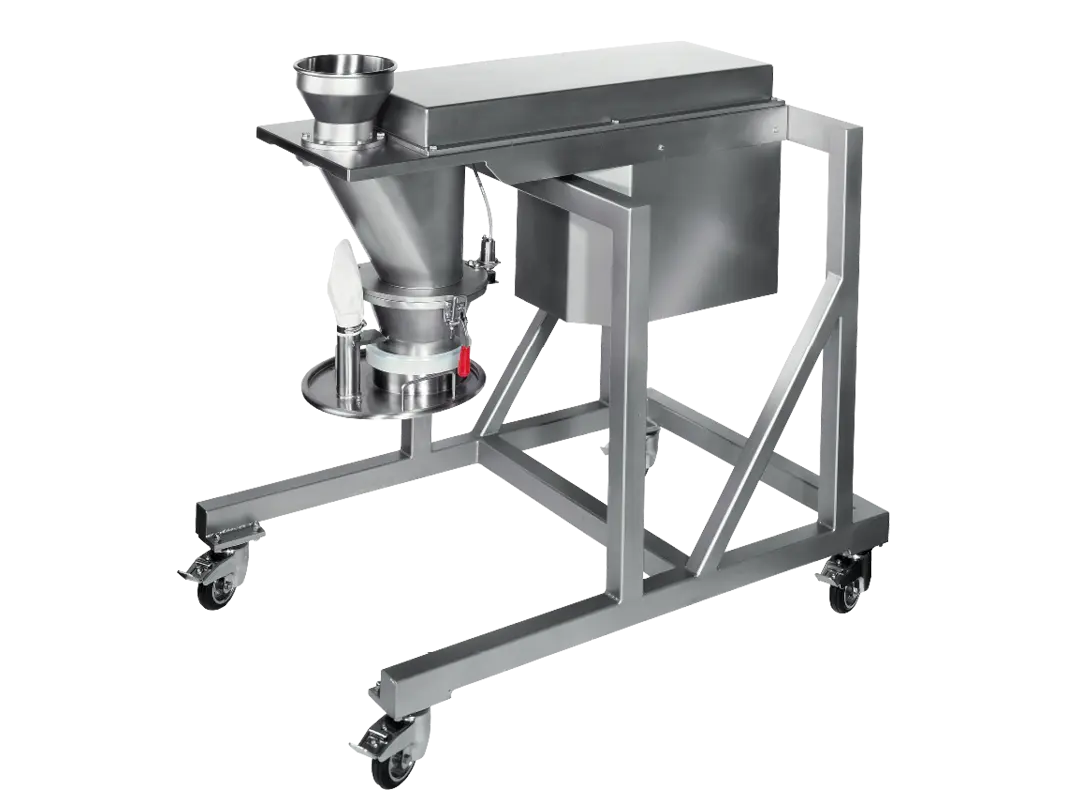

Bexmill ABM
You place high demands on the crushing technology of your bulk materials? Our Bexmill ABM product line is the perfect answer with which the requirements of the pharmaceuticals, chemicals and food processing industries can be satisfied – from laboratory-scale to industrial-scale production up to 10 t/h. What that means for you: ONE single product line in a number of different machine sizes for a maximum range of applications.
- Multiple options, accessories, and design variants available
- Grinds soft to medium-hard materials in one step
- Fast tool change of rotor and screen
- Short cleaning times, easy operation
Principle of operation
Crushing with the Bexmill brings several advantages right from the start:
- Bulk materials are homogenised, the flowability improved, the bulk density increased, agglomerates dispersed and rejects crushed gently
- The conical shape of the grinding chamber guarantees high speeds, higher throughput rates and higher fineness values
- Wide product and application range – from moist to dry feed material
- The rotor can be adjusted without any need to open the grinding chamber, and this ensures an optimum crushing effect
Applications
Tailored to your application
- Crushing of flakes, homogenisation of mixtures, disintegration of agglomerates, finishing of granulates
- After mixer agglomeration, after fluid beds and kilns
Powdered milk
The deagglomeration of the powder downstream of the mixing and drying steps constitutes an essential element of the production of high-quality milk powder.
Salt & Sugar lumps
Hygroscopic products have a tendency to form lumps during their storage. Homogenisation ensures a smooth production process.
Salty snacks / Sweet pastries
Broken goods need no longer be disposed of but can rather be returned to the production process as rework material.
The facts speak for themselves
| Design | Options | Accessoires |
|
|
|

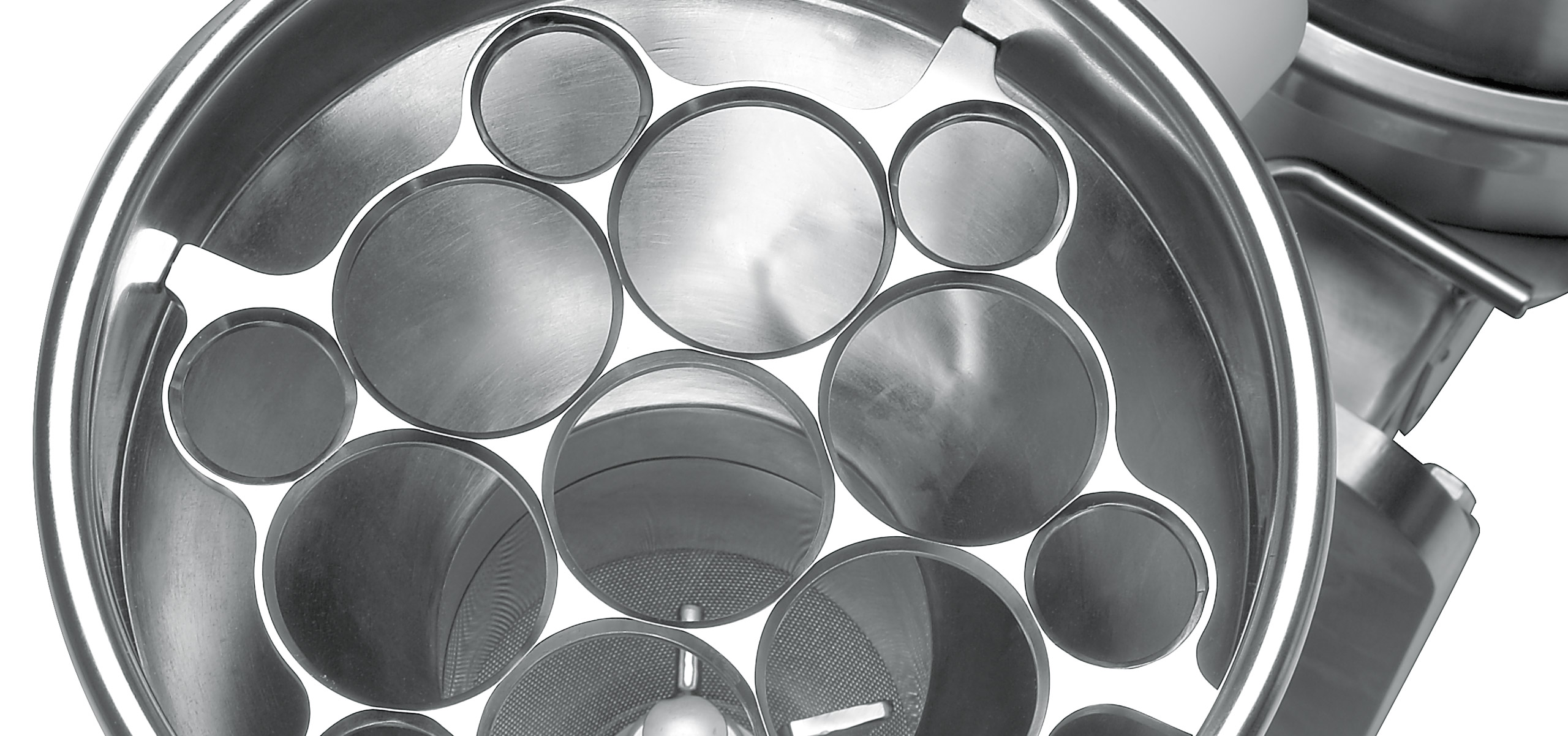

Your screen for optimum product quality
Choose a screen insert depending on the product properties for the perfext interaction between the grinding tool and the screen:
- Round perforations
- Rasp-like perforations
- Slotted perforations
- Square perforations

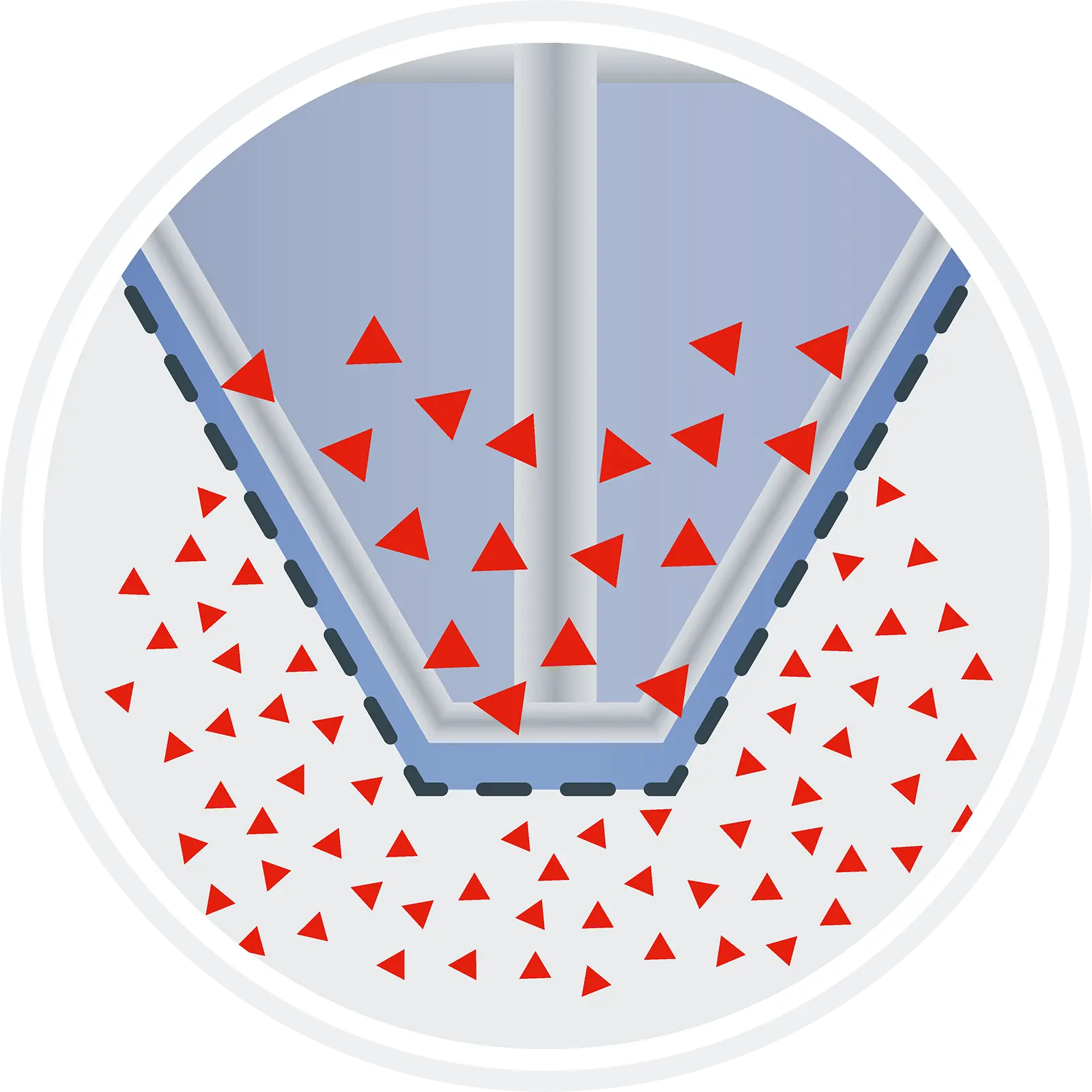

The amount of energy required is generally low and corresponds roughly to the force that one can apply by manual crushing. The product is crushed between the rotor and the screen. A defined top cut is achieved in this way. Typical screen mesh sizes range from 0.5 – 10 mm.
Thanks to the low energy input, the end product is low in fines and the crushing process is low in noise. The feed material must not necessarily be dosed. The machine does not need to be dedusted.
Test before you buy
Our test center can perform product trials with your test material. That lets you see the quality of our systems for yourself.
We will be happy to advise you – get in touch with us!
