Picoline laboratory mill
Every development task is different. With its modular design and versatile applications, the Picoline laboratory platform offers maximum flexibility for experiments, product development and process optimisation – all in a very compact space and with minimal effort. 11 different modules can be seamlessly integrated into the platform.
Your benefits at a glance
- Machine for fine grinding, classifying or mixing powders in laboratories
- Especially for processing very small product quantities of a few millilitres
- Compact and modular design with numerous functional modules
- Separation of control and work unit
- Consisting of four parts: Platform control, process platform, function modules and accessories
A laboratory system customised to your specific requirements
|
Module name |
Alpine machine type |
Size |
Fineness |
|---|---|---|---|
|

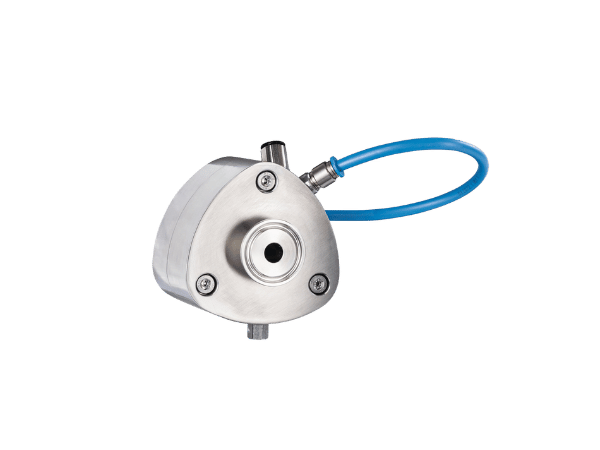

Piconizer |
Spiral jet mill (AS) |
AS 33 |
d90 < 20µm |
|

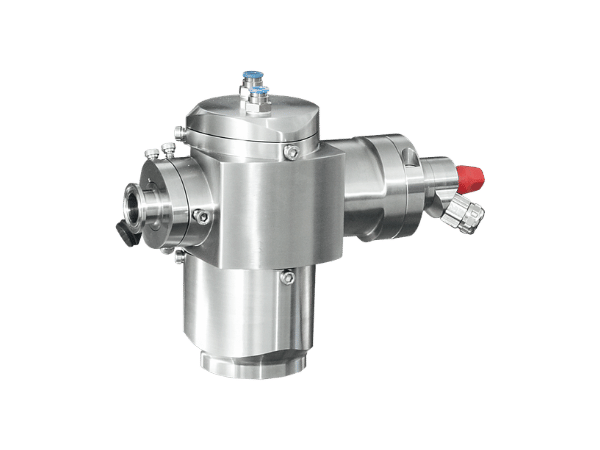

Picojet |
Fluidised bed opposed jet mill (AFG)FG) |
AFG 40 |
d97 < 5 µm |
|

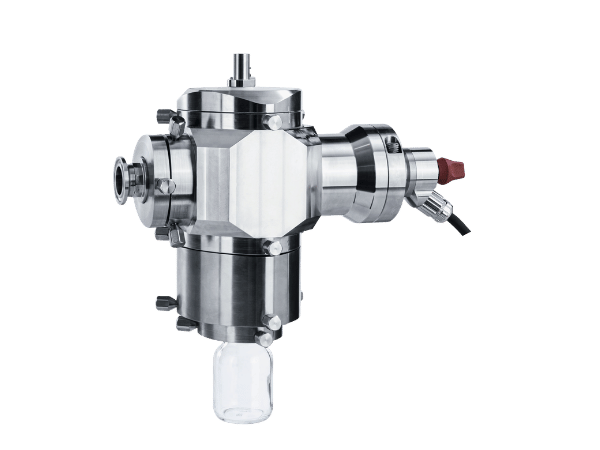

Picosplit |
Classifier (ATP) |
ATP 20 |
d97 < 5µm |
|

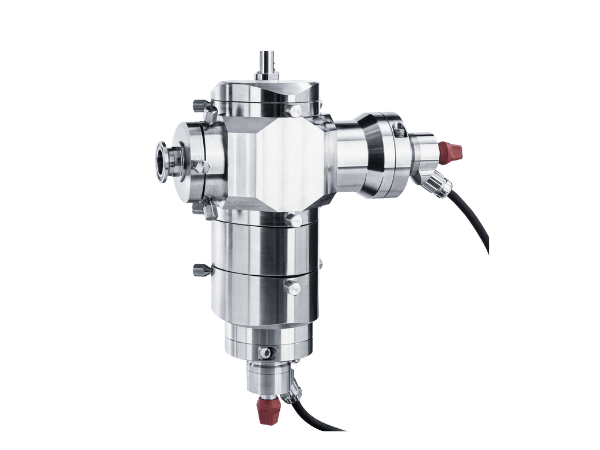

Picozirk |
Classifier mill (ZPS) |
ZPS 20 |
d97 < 20 µm |
|

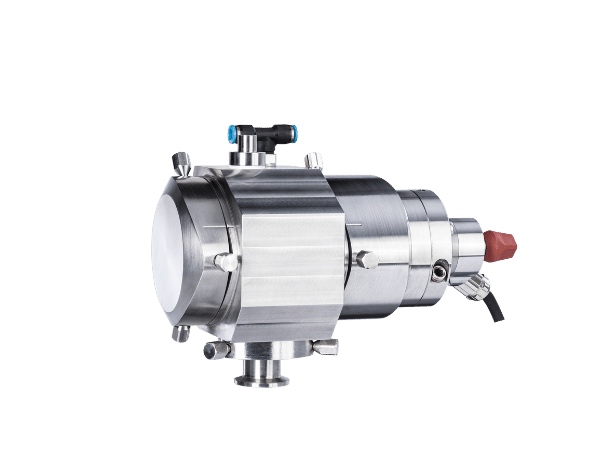

Picoplex |
Fine impact mill (UPZ with pin discs) |
UPZ 40 |
d90 < ca. 80 µm |
|
Picoplex |
Fine impact mill (UPZ with plate beater unit) |
UPZ 40 |
d90 ca. 120 µm |
|

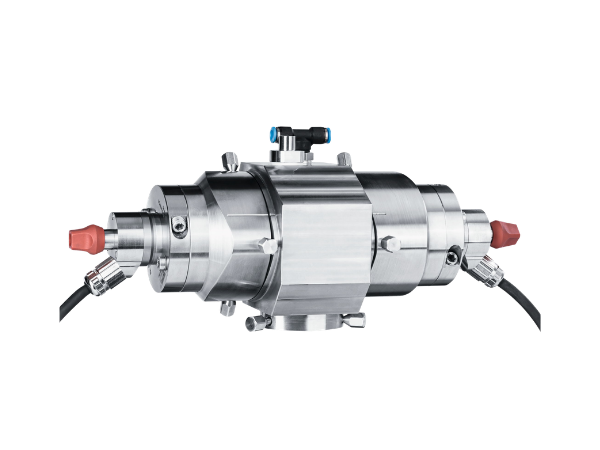

Picocross |
High-speed fine impact mill C/CW |
C 40 |
d90 ca. 50µm |
|

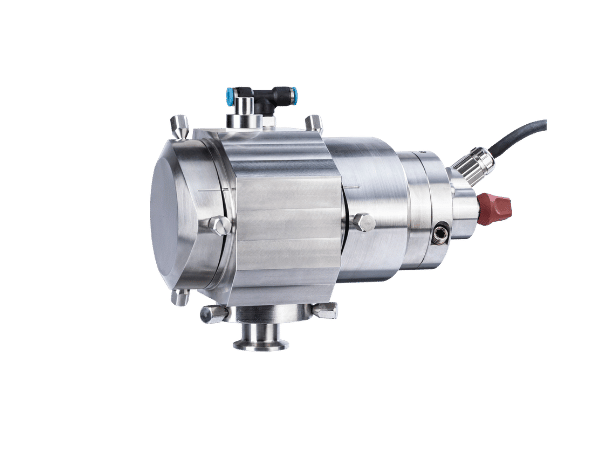

Picocrush |
Hammer mill (HA) |
Ha 4/2 |
d90 < 0,5-1 µm |
|

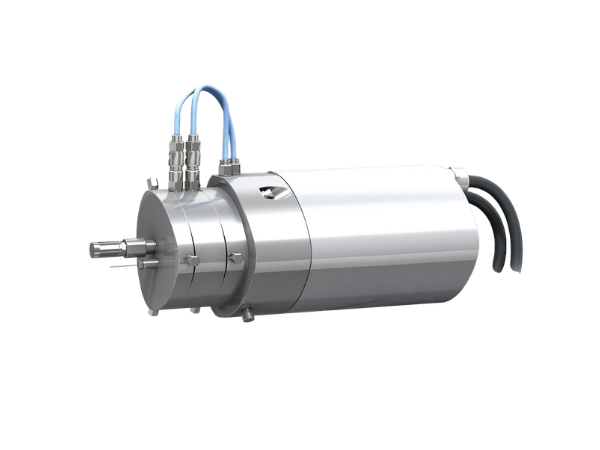

Picobond |
Coating (Nobilta) |
NOB-80 |
|
|
Picobond |
Coating (AMS) |
AMS-80 |
|
|

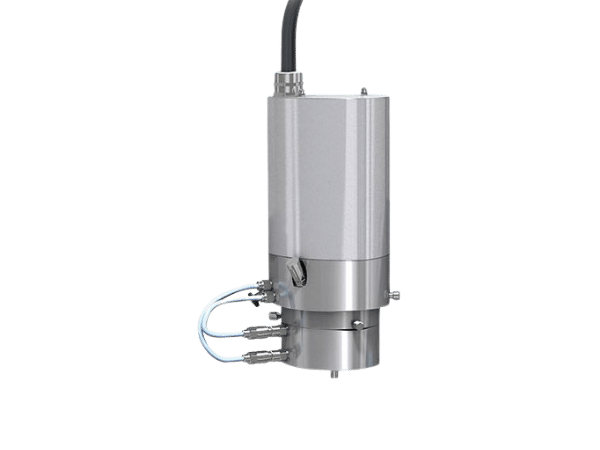

Picomix |
Mixer (Cyclomix) |
CLX 0.1 |

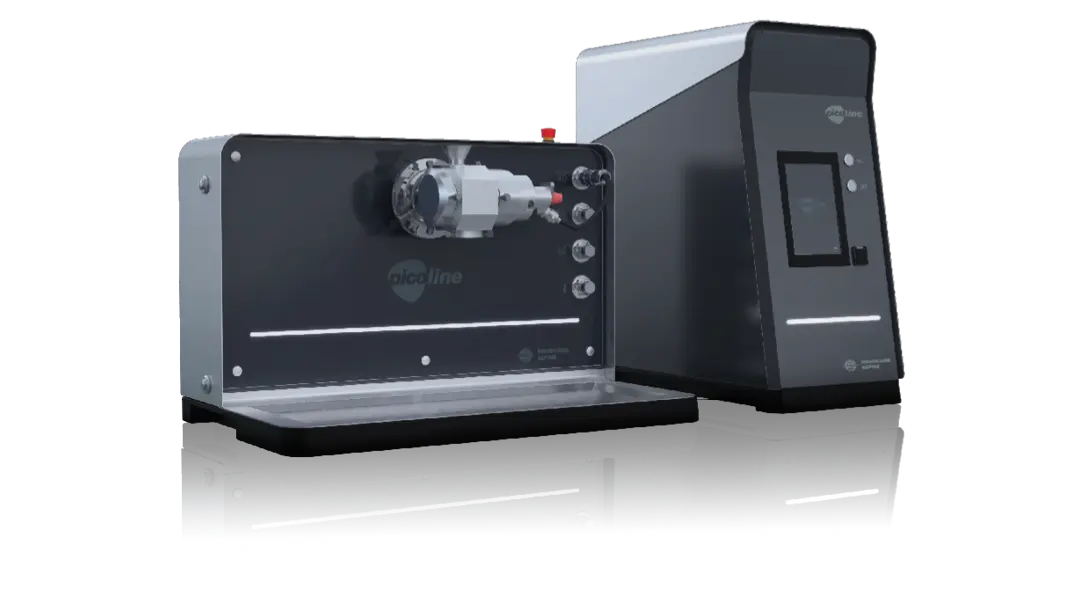

The platform is an ergonomic, two-part element. One part is used to accommodate the Picolinefunction modules, the other part contains the control elements, the HMI and the gas distributor. By separating the control and work units, both parts can be positioned independently of each other and adapted to existing conditions. For example, the process platform can be installed in a fume cupboard due to its compact dimensions, while the control unit can be conveniently and easily operated outside the fume cupboard. The process platform surface is made of brushed stainless steel and is quick and easy to clean.
The standardised control unit for all Picoline function modules and all electrical and mechanical components required to operate the function modules are housed within the control platform to save space. The adapter itself is designed for the connection of all function modules. This means that the system can be gradually expanded with additional modules at a later date.
Equipment details
- Touch panel for operation, fast response times
- Microprocessor, CAN bus, power supply unit
- Power switch, connection cable, 1 USB port
- Rotatable adapter with media feed for attaching the respective machine to the platform (can be tilted for assembly purposes and Picobond)
- Integrated emergency stop switch
- LED status light as a visual signal for the system status
- Side recessed grips for easier positioning under the extractor hoods
- Separation of liquid, gas and power supply
Technical specifications
- Dimensions (without function module and accessories)
Process unit: (W) 710 mm x (H) 450 mm x (D) 480 mm
Control unit: (W) 330 mm x (H) 660 mm x (D) 620 mm
- Weight depending on equipment: approx. 50 kg per unit
The system is controlled via a touch panel with integrated microprocessor built into the platform. The installed function module is selected by the operator and the stored control logic is automatically activated. Operating data, setting values and trend curves can be visualised on various display levels.
Data can be exported from CSV files to a USB stick.
The miniature machines are used in research institutes and development departments of companies in the pharmaceutical, chemical, ceramics, battery research, functional materials, magnetic materials, rare earths and wherever the smallest quantities of powder are processed.
System accessories
Expand your Picoline to suit your application

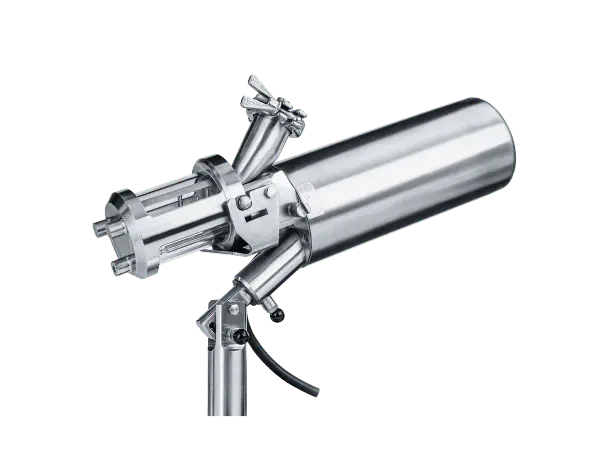

- The PMD screw feeder is suitable for precise, continuous product feeding
- Four different screw flights for flexible application options
- A wear-protected version with ceramic coating is available

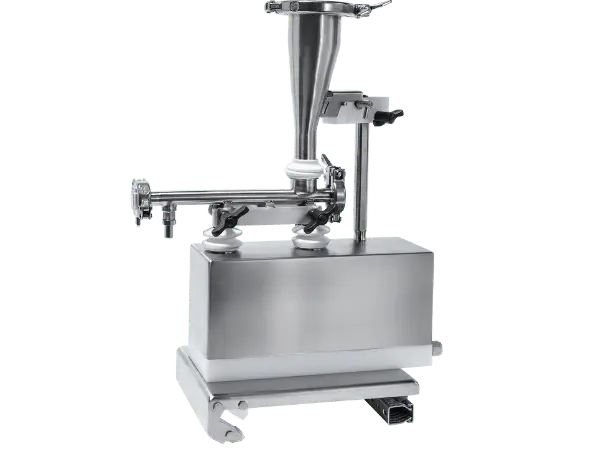

- The PDR pharmaceutical dosing tube ensures gentle product conveying by means of vibration
- The dust-tight design guarantees very easy cleaning

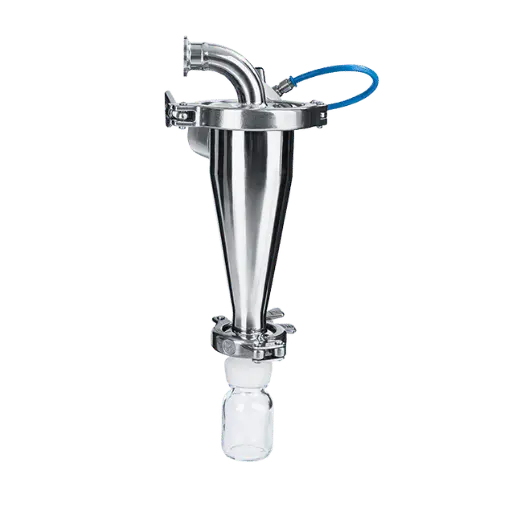

- The cyclone is suitable for separating the product before the filter
- Guarantees easier product extraction
- Quick to clean

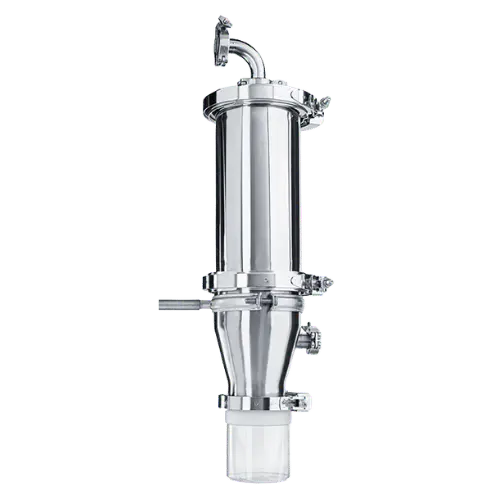

- Flexible, needs-based standard filter equipment
- Optionally also available with filter hoses or filter cartridges
- On request with Safecoat coating as wear protection for highly abrasive products
The Hepa filter is recommended for processing toxic and other critical materials to protect employees and the environment (filter class H13)
- The vacuum cleaner provides the necessary negative pressure in the grinding and classifying processes
- It is started and stopped by the Picoline
- The PSD small-volume feed metering unit ensures continuous product feeding for maximum process stability
- Six different reversible dosing discs are available
- The KF cold screw conveyor is suitable for the use of liquid nitrogen in cryogenic grinding processes
- Also suitable for very sensitive or difficult-to-grind products
- The temperature control unit cools or heats the Picobond and Picomix modules within a temperature range of 5 – 70 °C
- Collection container with thread and lid, available in various sizes
