High-precision film winders
What would be an elaborately produced film without the appropriate winding technology? For more than 70 years, the Alpine subsidiary HOSOKAWA KOLB has been developing solutions for perfect film rolls
- experience gained from more than 2,500 produced winding machines
- close cooperation with experts from blown film extrusion
- product portfolio that offers the optimum winder for every type of film
- Designed for high speeds
- Face-to-face or back-to-back configuration possible
- effective avoidance of air inclusions
- optimal winding hardness adjustment
- perfect appearance and flatness
- all winders available as WS (single) or WD (double)
- Excellent further processing of the rolls
- Integration of pre take-off and take-off possible
The simplest winding principle is usually used for monofilm made of HDPE or LLPE/LDPE for simple bags or waste bags. The method is also particularly suitable for blunt films.

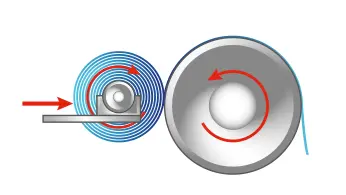

The most universal winding system is suitable for both simple and complex film structures. In addition to the contact winder, the film roll is driven in a controlled manner.

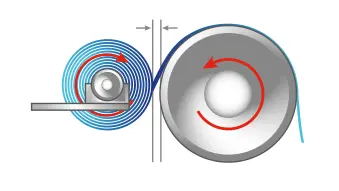

The gap winding is a special form of central winding. Typical applications: strongly sticky films (e.g. high AVA content or ionomer on the outer layer), blunt or strongly shrinking films.
