Roller presses especially for the chemical, food and minerals industries.

• Improvement of the flow properties
• Reduction of dust pollution,
• Improvement of the through-flow
• Improvement of the distribution behaviour
• Customised particle size and shape
• Increased bulk density
• Modified reaction behaviour (such as solubility)

You can find an overview of our kompaktor series and their respective features on our machine page Kompaktors | Roller presses. Find the right kompaktor for your requirements.

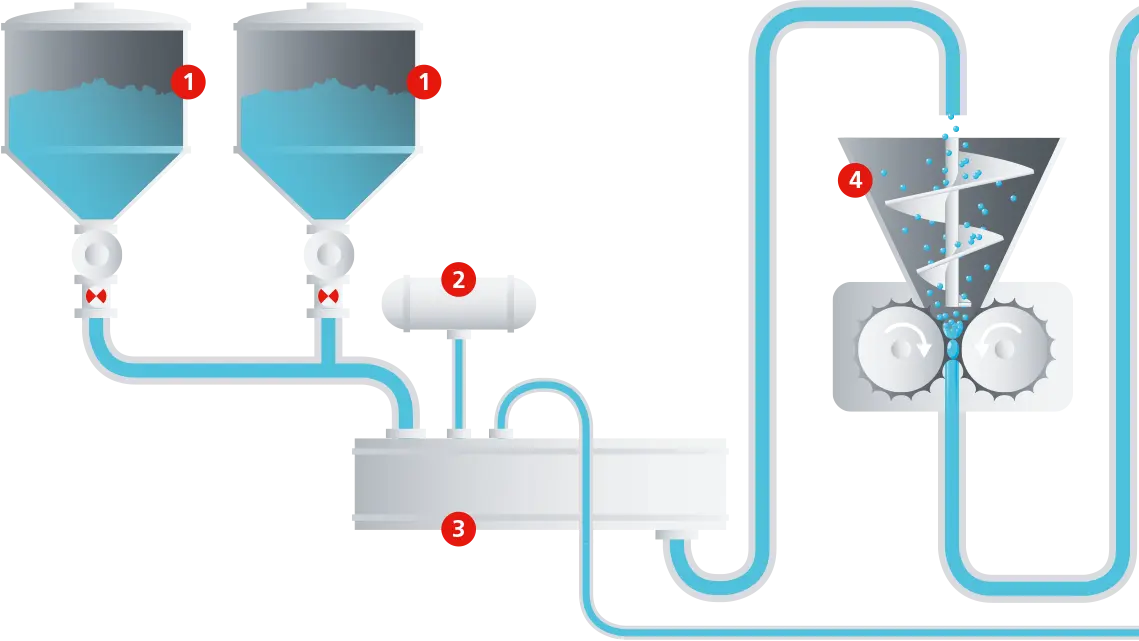

Whether briquetting or granulating – the results are always impressive. Because every system is tailor made to the customer's specific requirements.

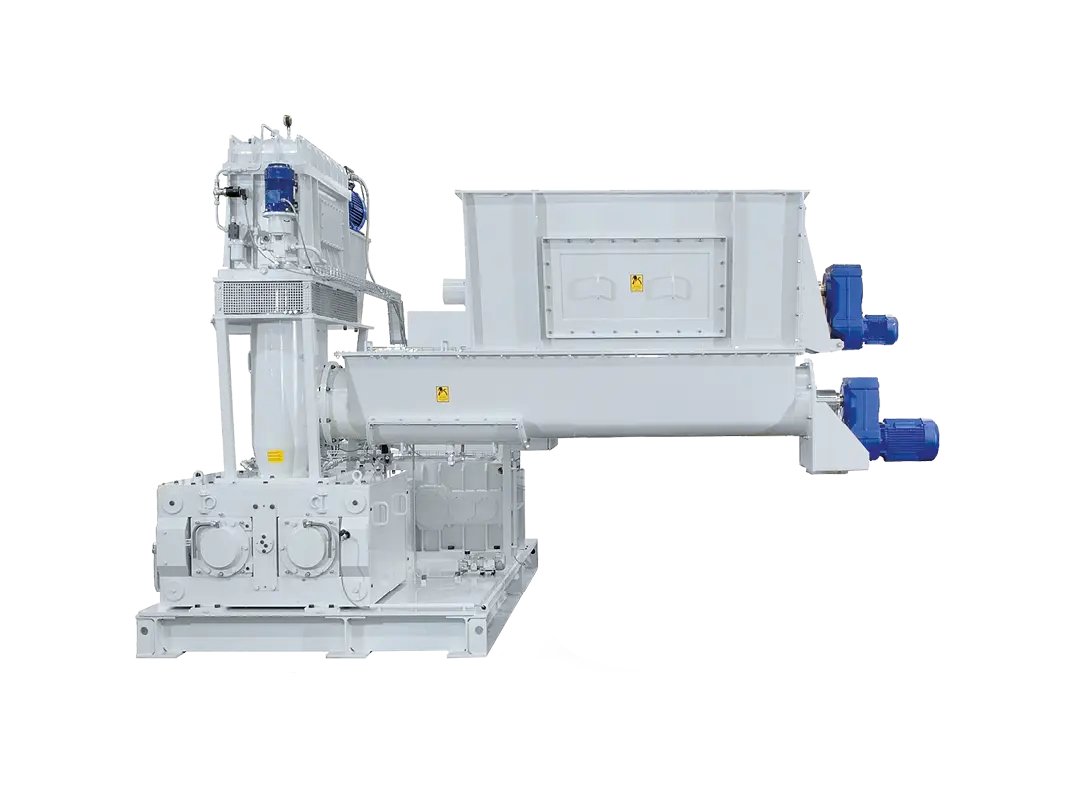

The Hosokawa Alpine MS kompaktor series is used when a compacted material in the form of briquettes or granules is required for process steps within the value chain. This kompaktor is ideally suited for precisely these applications.

The Hosokawa Alpine MS kompaktor series has two counter-rotating rollers that press the fine-grained powder into solid flakes or briquettes. This machine can also be used as a high-pressure roller mill for grinding solid, abrasive materials. The roller is mounted on tapered roller bearings on both sides. This bearing concept allows not only radial forces to be absorbed but also axial force components, which guarantees a very long service life for the bearings. The roller/bearing arrangement is accommodated in a hinged press frame system. One of the two rollers is designed as a fixed roller and the second roller as a loose roller. The loose roller is pre-tensioned with a hydro-pneumatic spring system, allowing the required pressing forces to be applied during operation.

With the MS series, pressing forces can be achieved which, depending on the material properties, allow the material to be compacted to 99% of its pure density. The MS series is designed for throughputs of 0.5 t/h up to 250 t/h.

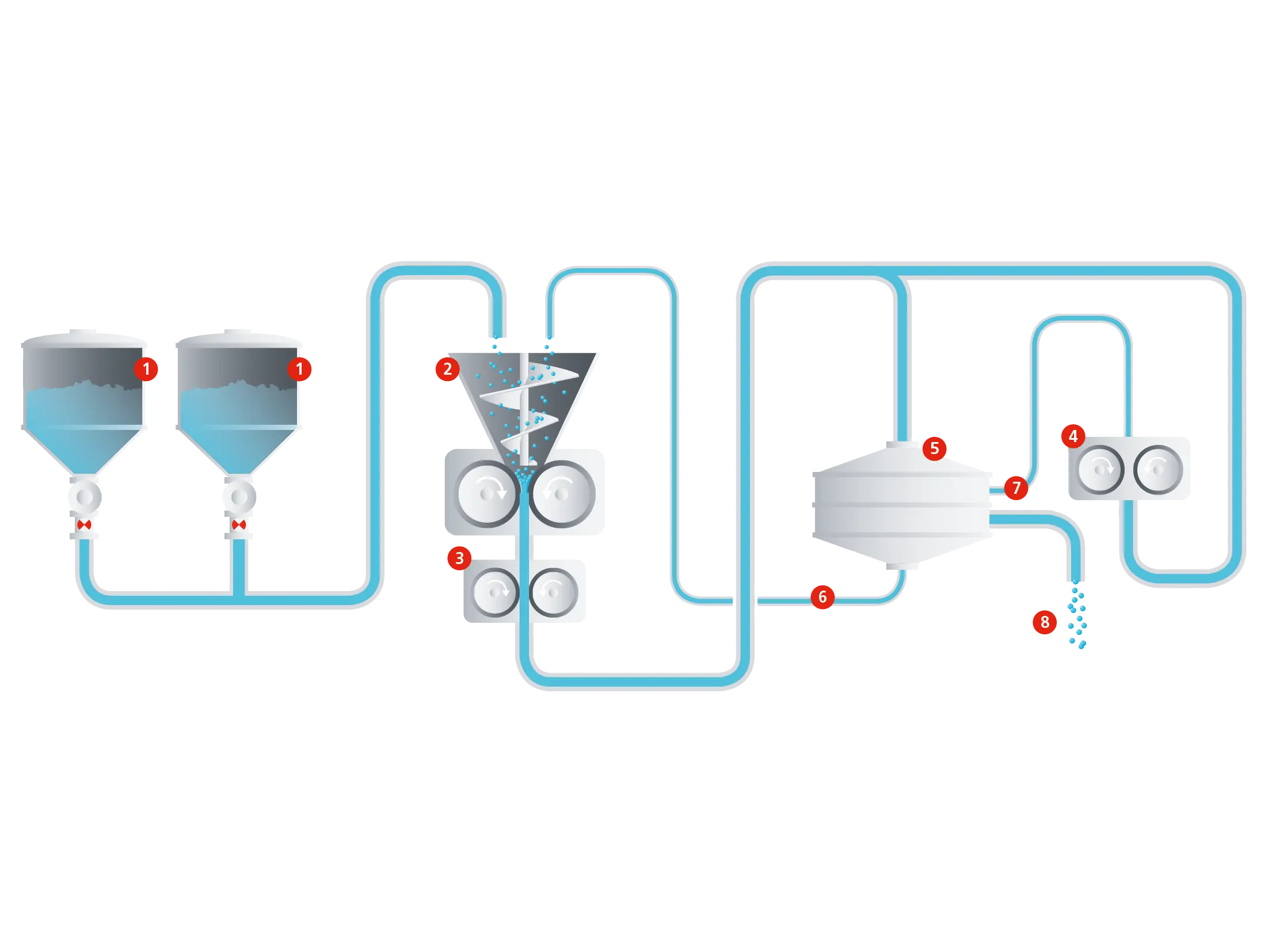

There are two different processes for granulation:

Dry granulation:

• Compacting and subsequent grinding

• No addition of binders required

• No drying necessary

• Especially for products that are sensitive to heat or moisture

• End product: granular, free-flowing mixture of uniform size

Wet granulation:

• Addition of binders in liquid form (water or alcohol-based)

• Drying process necessary

• Granulation following compaction and drying

• Possible negative impact on the quality of the granules

Your benefits with the ARC MS kompaktor

• Tailored to customer requirements

• High system availability with consistent product quality

• Energy efficient process

• Outstanding ratio between machine size and throughput capacity

Designs

• Various roller surfaces as well as segmented rollers

• Parts in contact with the product are made of normal or stainless steel

• Special materials for high wear resistance

• ATEX machines and systems

• Dust-tight and gas-tight (inert operating mode possible)

• Homogeneous product feed: Vertical screw feed, horizontal/vertical screw feed, multiple screw feeds, gravity feed or vacuum venting possible

The Hosokawa Alpine kompaktor from the CS series can be used to compact both flakes and briquettes. This machine can also be used as a high-pressure roller mill for grinding solid, abrasive materials. The required pressing force is applied via a hydro-pneumatic spring system. Due to the design, very high pressing forces can be achieved. Thanks to the single-sided bearing of the two counter-rotating rollers, the roller rings can be changed within a few minutes. The simple adjustment of the working gap and the modification of the screw feed also allow the production conditions to be adapted quickly and flexibly. The ARC CS 25 compactor is particularly suitable for small production quantities of up to 0.8 tonnes per hour. It is ideal for frequent product changes and abrasive products.

The compact and space-saving design of the machine allows for easy integration into existing production facilities and on-site field tests. This machine can be provided by our Rental & Used Machine Division for this purpose, available either as a used or rental model.

Your benefits with the ARC CS kompaktor

• Tailored to customer requirements

• High system availability with consistent product quality

• Energy efficient process

• Quick tool changes

Designs

• Various roller surfaces

• Parts in contact with the product are made of normal or stainless steel

• Special materials for high wear resistance

• ATEX machines and systems

• Dust-tight and gas-tight (inert operating mode possible)

• Homogeneous product feed: Vertical screw feed, horizontal/vertical screw feed, gravity feed or vacuum venting possible
