Series APC L, APC C & ARC K
Machines for smaller throughputs up to the laboratory range, made entirely of stainless steel. The L and K kompaktor series are mainly used to process powders in the chemical and food industries, but they are also used in the pharmaceutical industry. The APC C Pharmapaktor was specially developed for the pharmaceutical industry.
Typical areas of application:
- Chemical industry: Catalysts
- Food industry: Tea/nutritional supplements
- Pharmaceutical industry: Tableting granulation
- Improvement of the flow properties
- Reduction of dust pollution,
- Improvement of the through-flow
- Improvement of the distribution behaviour
- Customised particle size and shape
- Increased bulk density
- Modified reaction behaviour (such as solubility)
You can find an overview of our kompaktor series and their respective features on our machine page Kompaktors | Roller presses. Find the right compactor for your requirements.
Customised solutions with APC kompaktors
Whether briquetting or granulating – the results are always impressive. Because every system is tailor made to the customer's specific requirements.
Granulation
Your system could look like this
- Product
- ARC MS kompaktor
- Prebreaker
- Fine crusher
- Sieving maschine
- Fine return material
- Coarse return material
- Ganulate end product

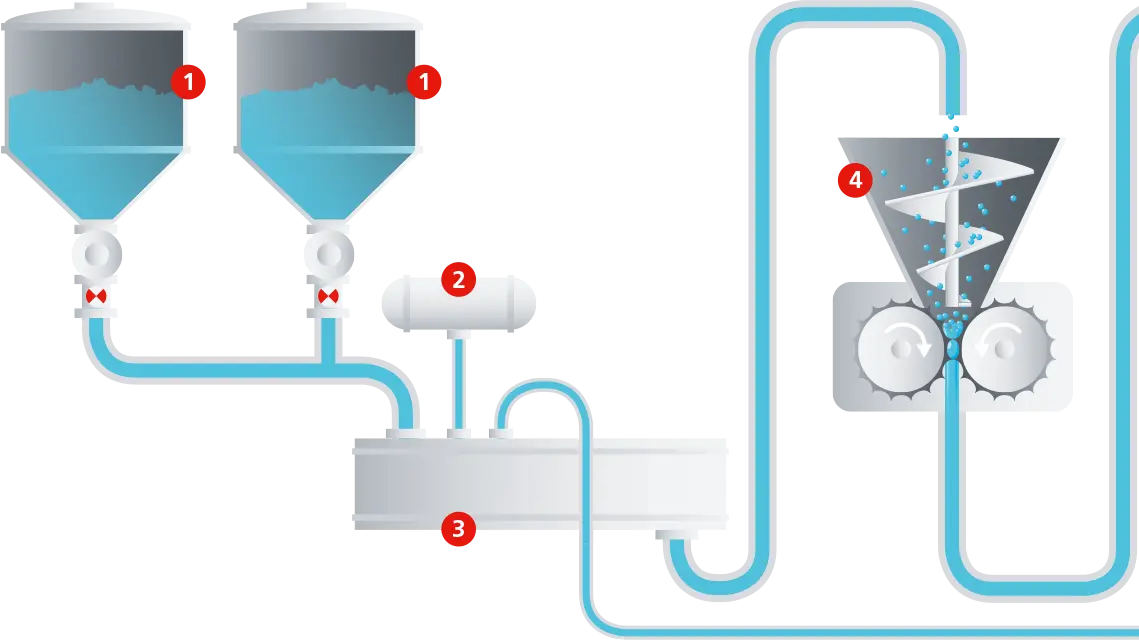

Briquetting
Your system could look like this
- Product, dry binder
- Liquid binder
- Mixer
- ARC MS kompaktor
- Sieving maschine
- Fine return material
- Briquette end product

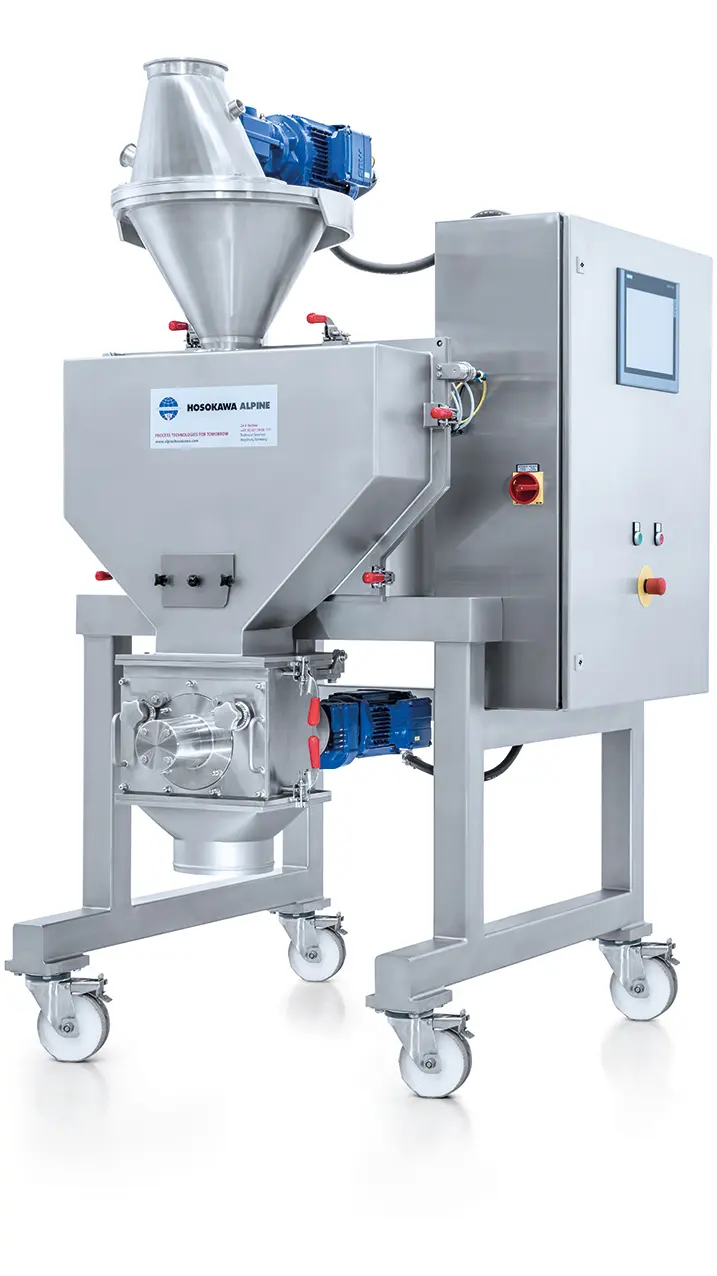

APC L Kompaktor
Getting powder into top shape
The APC L kompaktor is a robust, high-performance powerhouse that packs a punch: It works with a high pressing force, is mobile and saves space. The classic compacting system achieves optimum results when pressing powders. This is ensured by the proven technical sophistication of the machine concept. With its swing concept, the APC L kompaktor can also be cleaned quickly thanks to the special roller bearing: The rollers can be changed in less than five minutes.
Depending on the requirements, there are two different roller press agglomeration processes to choose from: dry granulation and briquetting. The kompaktor is equipped with a pressing force control as standard. As a rule, the throughput of the standard size L200/50 is 100 kg/h, but in special cases it can also be up to 200 kg/h.
- Consistent product properties thanks to process control
- Energy efficient process
- Unique swing system for quick roller changes
- Quick cleaning
- Quick tool changes
- Parts in contact with the product are made of stainless steel
- Dustproof
- Integrated sieve mill
- FDA-compliant design
- WIP design
- ATEX
- Vacuum venting
- Gas-tight design
- Inert operating mode
- Insulator design
Technical data
|
APC L Kompaktor |
200/30 |
200/50 |
|---|---|---|
|
Pressure force (kN) |
80 |
150 |
|
Roller diameter (mm) |
200 |
200 |
|
Roller width (mm) |
30 |
50 |
|
Drive (kw) |
2,95 |
5,1 |
|
Throughput (kg/h) |
1,5 - 30 |
10 - 150 |
|
Vacuum pre-venting |
ja |
ja |
|
Roller speed (rpm) |
4 - 30 |
4 - 30 |
|
Weight (kg) |
ca. 1250 |
ca. 1300 |

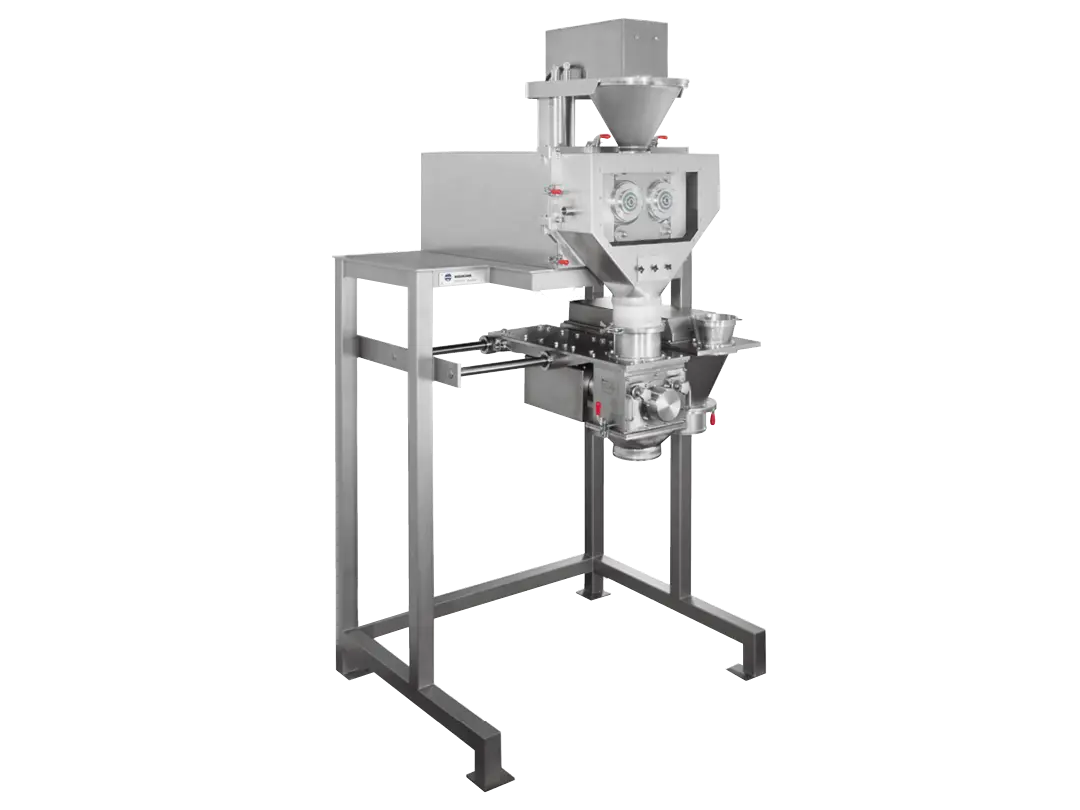

ARC K Kompaktor
Powerful and efficient
The ARC K series complements the L series. In contrast to the L-series, the K-series is based on a press frame without swing arms with roller arrangements mounted on both sides. This means that tool changes and cleaning take a little longer, but also that larger machines can be achieved. In addition, the roller gap (at standstill) can be adjusted and roller cooling is possible. The kompaktor is also equipped with a pressing force control as standard.
The throughput of the large version of the K series is up to 1000 kg/h and more.
- Process control
- Energy efficient process
- Parts in contact with the product are made of stainless steel
- Dust-tight design
- Adjustable roller gap
- Integrated sieve mill
- Roller cooling
- FDA-compliant design
- Vacuum venting
- ATEX
- WIP design
- Insulator design
Technical data
|
Kompaktor ARC K |
200 / 50 |
200 / 100 |
300 / 200 |
|---|---|---|---|
|
Pressing force (kN) |
150 |
200 |
300 |
|
Roller diameter (mm) |
200 |
200 |
300 |
|
Roller width (mm) |
50/75 |
100 |
140/200 |
|
Throughput (kg/h) |
10 - 150 |
20 - 300 |
30 - 900 |

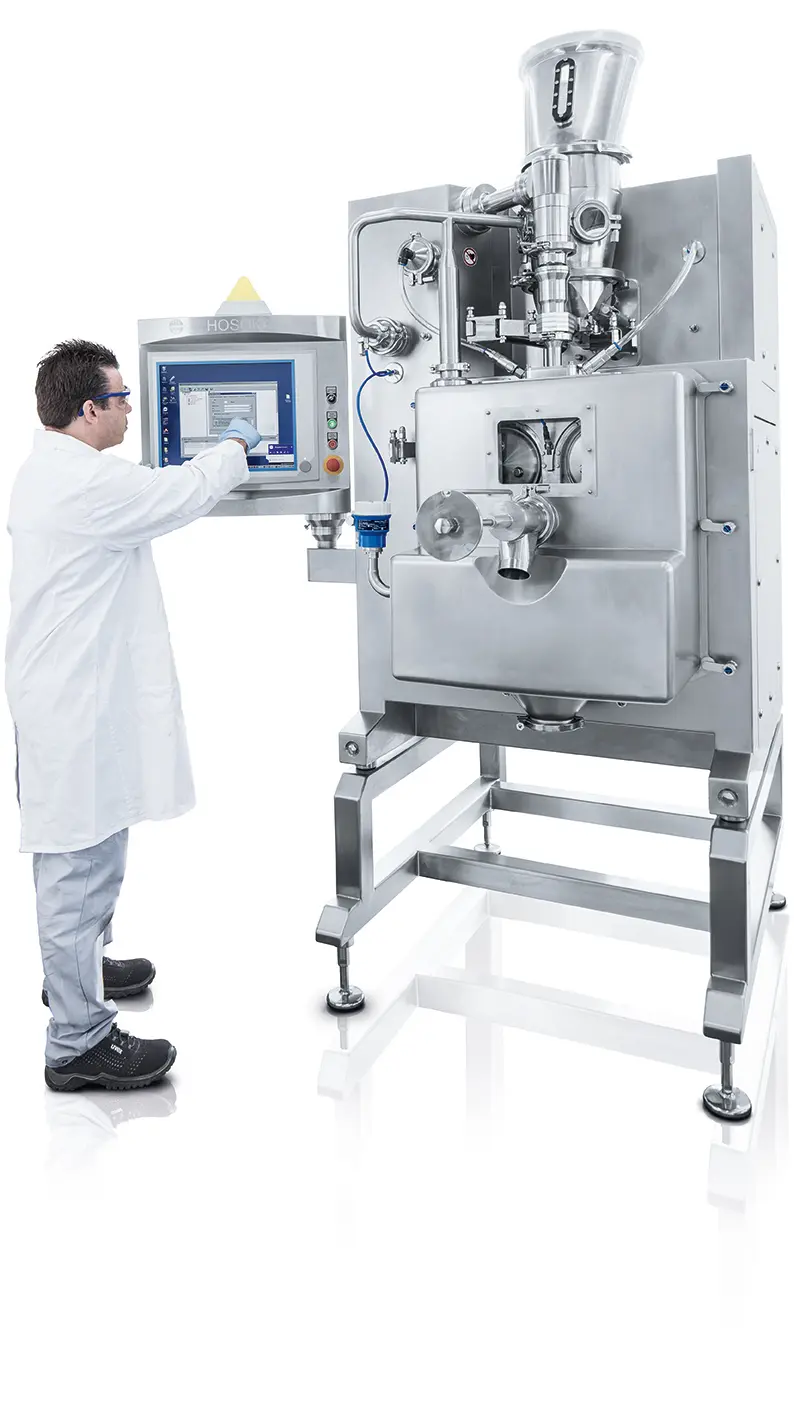

Pharmapaktor APC C
In a class of its own: the innovative compacting technology for the pharmaceutical industry
In view of the very high and demanding requirements of the pharmaceutical industry in terms of machinery and process equipment, Hosokawa Alpine's Pharmapaktor APC C roller press is a suitable solution for processing pharmaceutical powders in the compaction-granulation process with a single machine.
The pharmaceutical actuator has gap and screw control. The gap adjustment is electromechanical, guaranteeing consistent flaking properties and low maintenance. The ergonomic machine design and the special hygienic design allow for efficient cleaning, also as a wash-in-place (WIP) version.
The Pharmapaktor C is dust-tight (up to OEB 3) and can be designed with an appropriate isolator/containment system up to an Occupational Exposure Band 5 (OEB 5).
The Pharmapaktor C is available in a variety of working widths. Depending on the product properties, batches as small as 50 g can be processed with the small machine design in the R&D area. With the largest working width, throughputs of up to 150 kg/h can be achieved.
Your benefits with the APC L kompaktor
- Consistent product properties thanks to process control
- Energy efficient process
- Unique swing system for quick roller changes
- Quick cleaning
- Quick tool changes
- Parts in contact with the product are made of stainless steel
- Dustproof
Design
- Integrated sieve mill
- FDA-compliant design
- WIP design
- ATEX
- Vacuum venting
- Gas-tight design
- Inert operating mode
- Insulator design
Technische Daten
| Pharmapaktor APC C | 80/20 | 250/30 | 250/50 |
| Max. pressing (kN/cm) | 6 | 40 | 24 |
| Roller diameter (mm) | 80 | 250 | 250 |
| Roller width (mm) | 20 | 30 | 50 |
| Roller speed (1/min) | 0,5 - 18 | 0,5 - 30 | 0,5 - 30 |
| Minimum batch quantity (g) | 50 | 100 | 100 |
| Throughput (kg/h) | 6 | 30 | 150 |
Der Durchsatz ist produktabhängig.
